제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 아연 도금 와이어, Galfan 코팅 와이어 | 와이어 두께: | 3mm -6mm, 8mm도 만들 수 있습니다 |
|---|---|---|---|
| 메쉬 구멍: | 75mm, 3inch, 80mm, 100mm 등 | 특대형 화물: | 클라이언트의 요구 사항에 따라 |
| 연결: | Sprial 와이어 또는 C 손톱 | 패키지: | 평평한 나무 팔레트를 사용하십시오 |
| 산출: | 1000 세트 | 견본: | 무료 |
| 강조하다: | welded gabion wall baskets,anti rust river retaining wall,low cost welded gabion baskets |
||

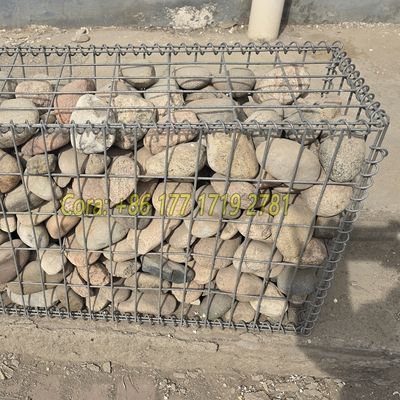

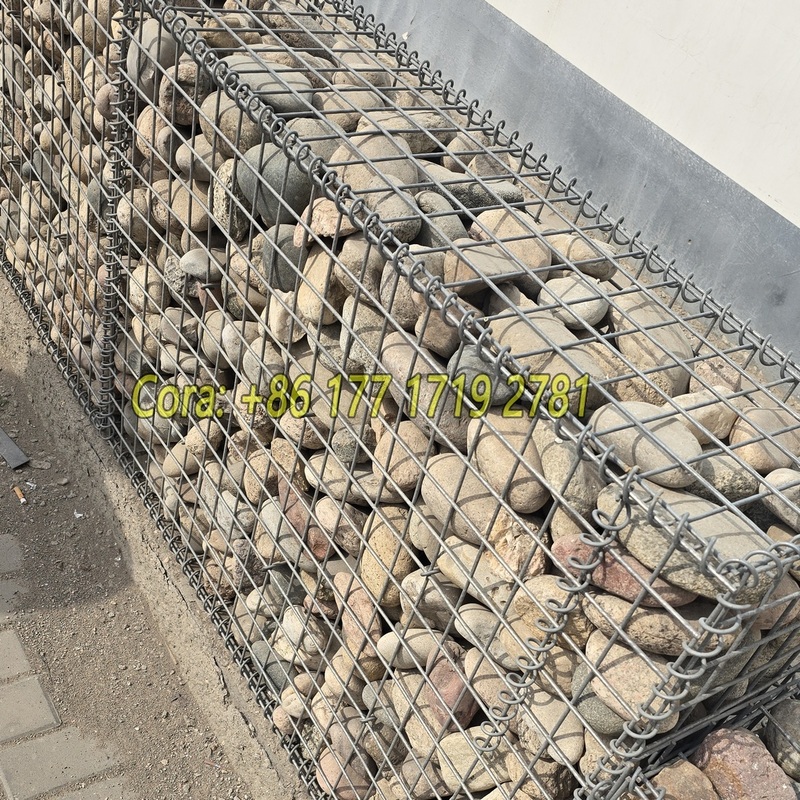

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets
Produced using square mesh hole panel, welded mesh gabions usually have an opening dimension of 75.0mm × 75.0mm; the longitudinal and cross wires are welded together right at their intersection points.
Welded Gabion produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit.
| Material | Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire | ||
| Wire Diameter | 3 mm-6 mm | ||
| Aperture | 50*50 mm, 50*100 mm etc | ||
| Gabion Box Size | 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc. | ||
| Finish | Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated. | ||
| Normal Box Size(cm) | Diaphragms | Capacity (m3) | Mesh Size(mm) |
| 100x30x30 | None | 0.09 | 50×50 or 100×50 |
| 100x50x30 | None | 0.15 | |
| 100x100x50 | None | 0.5 | |
| 100x100x100 | None | 1 | |
| 150x100x50 | 1 | 0.75 | |
| 150x100x100 | 1 | 1.5 | |
| 200x100x50 | 1 | 1 | |
| 200x100x100 | 1 | 2 | |
| Other sizes can be customized. | |||
Gabion Sizes
It should be noted that it is industry standard for gabions to be quoted as overall nominal sizes. The actual gabion sizing is dependant upon the physical mesh configuration.
Clarification should always be sought from the manufacturer in relation to gabion sizing.
Designation of sizes length x width x height
Gabion standard unit lengths: 975mm or 2025mm
Gabion standard unit widths: 450mm, 675mm, 975mm, 1350mm, 1500mm or 1650mm
Gabion standard unit heights: 450mm and 975mm
Non-standard sizes available in multiples of 75mm on request.
Here are some usage scenarios for welded mesh gabions:
Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.
Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.
Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.
Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.
Fabric Type: Galvanized welded mesh
Tensile Strength (wire): Welded: 540 to 770 N/mm²
Weld Strength: 75% of the minimum ultimate tensile strength of the wire
Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm
Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm
Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc
Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm
Standard basket heights – 500mm, 1000mm
Bespoke Sizes Available
