제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 침식 제어 개비 벽을위한 뜨거운 딥 아연 도금 용접 가전 벽 바구니 | 핵심 단어: | 용접 돌망태 바구니 |
|---|---|---|---|
| 유형: | 용접된 개비온 | 모양: | 직사각형 |
| 길이: | 0.3m-2m | 개비온 박스 폭: | 30cm |
| 아연 코팅: | 220-300g/m2 | 개비온 박스 높이: | 30cm, 50cm, 80cm, 100cm |
| 좌석 표면 색상: | 블랙/브라운/라이트 브라운 | 메쉬선 지름: | 4mm |
| 와이어 두께: | 4.0mm | 나사선 지름: | 3mm |
| 강조하다: | hot dip galvanized gabion baskets,welded gabion wall for erosion control,galvanized gabion baskets with warranty |
||

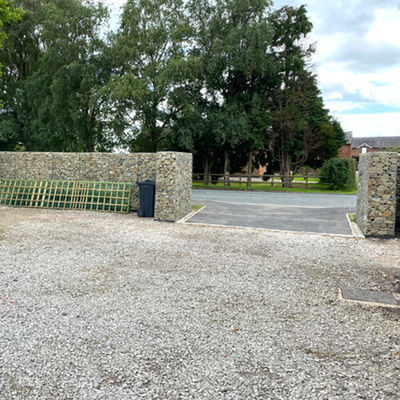

Hot Dip Galvanized Welded Gabion Wall Baskets For Erosion Control Gabion Wall
Hot-Dip Galvanized Welded Gabion Wall Baskets for Decorative Erosion Control
These welded gabion baskets feature hot-dip galvanized steel mesh forming structural yet decorative walls for garden slope management. The rigid panels create terraced planters that stabilize soil while displaying ornamental grasses, succulents, or cascading flowers. Designed for landscaped gradients, the open mesh supports root systems and natural drainage. Customizable in heights (30-80cm) for creating tiered floral arrangements or retaining elevated garden beds. The zinc-coated finish provides durability while maintaining a subtle metallic backdrop for vegetation. Used in residential gardens to combine erosion prevention with aesthetic planting solutions.

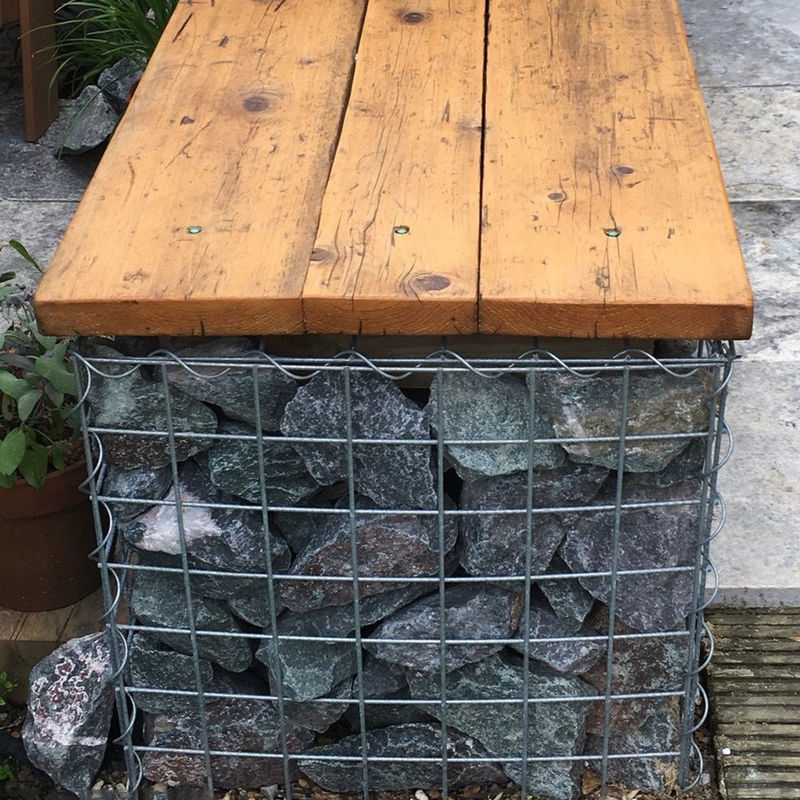

The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion | Wire Gauge Diameter | Mesh Size | Gabion Size |
| Galvanized | 3-5mm | 50X50,75X75,50X100 | 2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated | 3.0/3.8mm | 50X50,75X75,50X100 | 2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al | 3-5mm | 50X100,75X75,100X100 | 1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
High Structural Strength
Welded mesh provides superior load-bearing capacity (50% higher than woven gabions), ideal for steep slopes and heavy-duty applications.
Precision Geometry
Uniform grid patterns (e.g., 50×50mm, 100×100mm) ensure clean aesthetics for architectural and landscape designs.
Enhanced Durability
Hot-dip galvanization (≥260g/m² zinc coating) offers 25-30 years of corrosion resistance in harsh environments.
Rapid Installation
Modular design with clasp or spiral fastening systems reduces assembly time by 40% compared to woven alternatives.
Multifunctionality
Supports both stone filling (for erosion control) and soil planting (for green walls), blending functionality with ecology.
Low Maintenance
Stable structure minimizes deformation and long-term upkeep costs.
